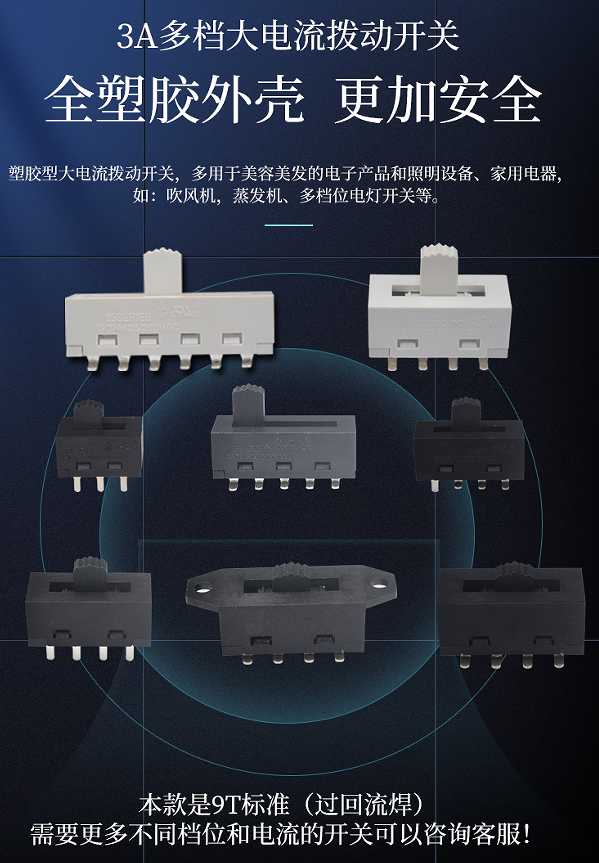

3A大電流多腳塑膠撥動開關批發價格：6T的是0.63/個；9T是0.77/個；款式不同，價格可能有所區別，具體可以咨詢客服！

規格Specification:

1. 開關型號Model No.:H25系列

2額定值Rating:16(4)A 125/2SOVAC

3接觸電阻Contact resistance:30 mf1

4絕緣電阻Insulation resistance:100 Mf1(DCSOOV /Min)

5. 電氣壽命Electronics life:> 10000 cycles

6操作力Operation force:600 士 200gf

7. 所有材料符合Rohs要求All meterials are Rohs compliant

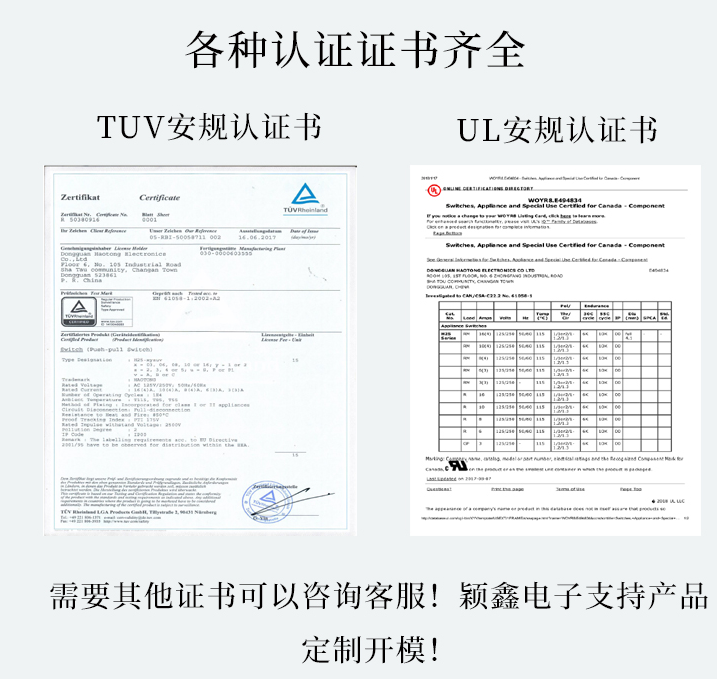

TUV和UL認證

如何焊接塑膠撥動開關：

（1）手動焊接

Please practice according to bellow conditions:

請按以下條件進行焊接：

Soldering temperature :≤350℃

焊錫溫度：≤350℃

Continuous soldering time:≤3 Sec

（2）自動焊接

For the product of DIP ,type solder according to the following conditions

對于 DIP 產品，請按以下條件進行焊接

Soldering temperature :≤260±5℃

焊錫溫度：≤260±5℃

Continuous soldering time: ≤3 Sec
